74404042047
Manufacturer:
Wurth Electronics
Mfr.Part #:
74404042047
Datasheet:
Description:

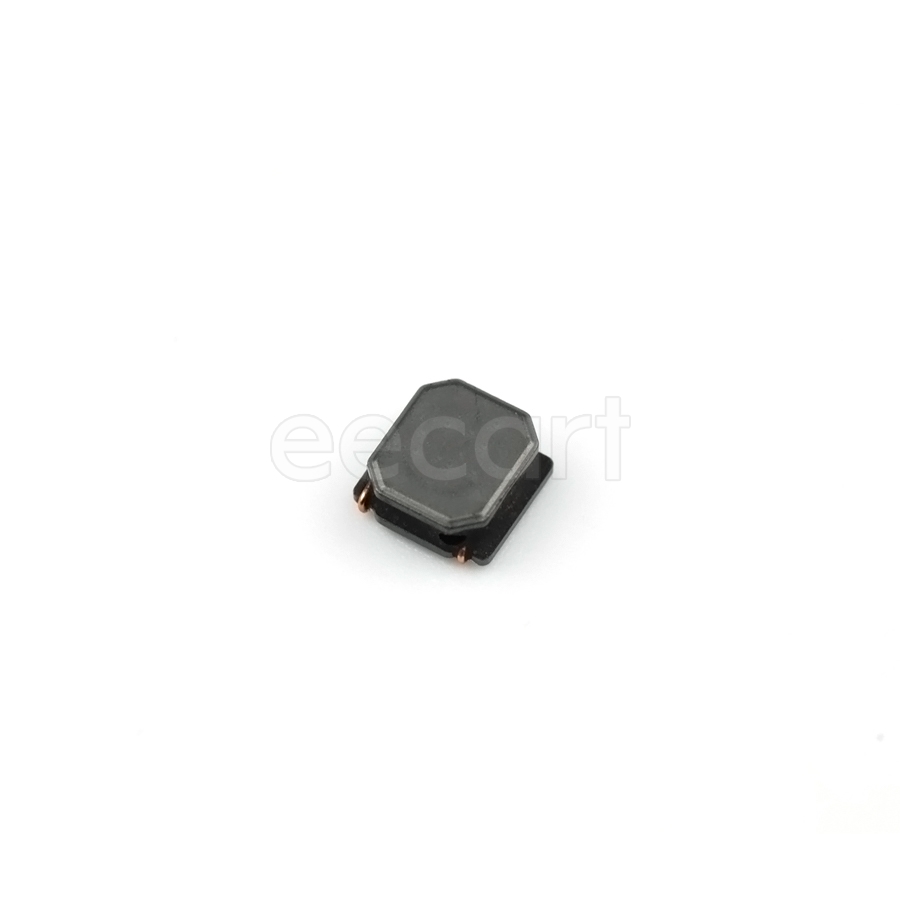

Fixed Inductors 4.00mmL×4.00mmW×1.80mmH SMD/SMT 4.7 µH 20 % 1.7 A 70 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.8 mm |
| Length | 3.9878 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 1.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 44 MHz |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 70 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.7 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.7 A |
| Saturation Current | 2.2 A |
| Type | Wirewound |
Stock: 265
Distributors
pcbx
pcbxUnit Price$0.72555
Ext.Price$0.72555
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72555 | $0.72555 |
| 10 | $0.68572 | $6.85720 |
| 25 | $0.64808 | $16.20200 |
| 50 | $0.61251 | $30.62550 |
| 100 | $0.57573 | $57.57300 |
| 300 | $0.54116 | $162.34800 |
| 500 | $0.50865 | $254.32500 |
| 1000 | $0.43379 | $433.79000 |
| 3000 | $0.36995 | $1109.85000 |
